As industrial automation and smart logistics continue to grow, AGVs and AMRs are widely used in warehouses, automotive plants, new energy production, electronics manufacturing, and automated production lines. They handle tasks such as material transport, process transfer, and automatic delivery.
As a key drive component in an AGV or AMR chassis, the steering drive wheel directly affects load capacity, running stability, steering accuracy, and overall efficiency. Choosing the right horizontal steering drive wheel can improve vehicle performance and reduce maintenance costs.
Horizontal Steering Drive Wheel: Powering AGV/AMR Motion

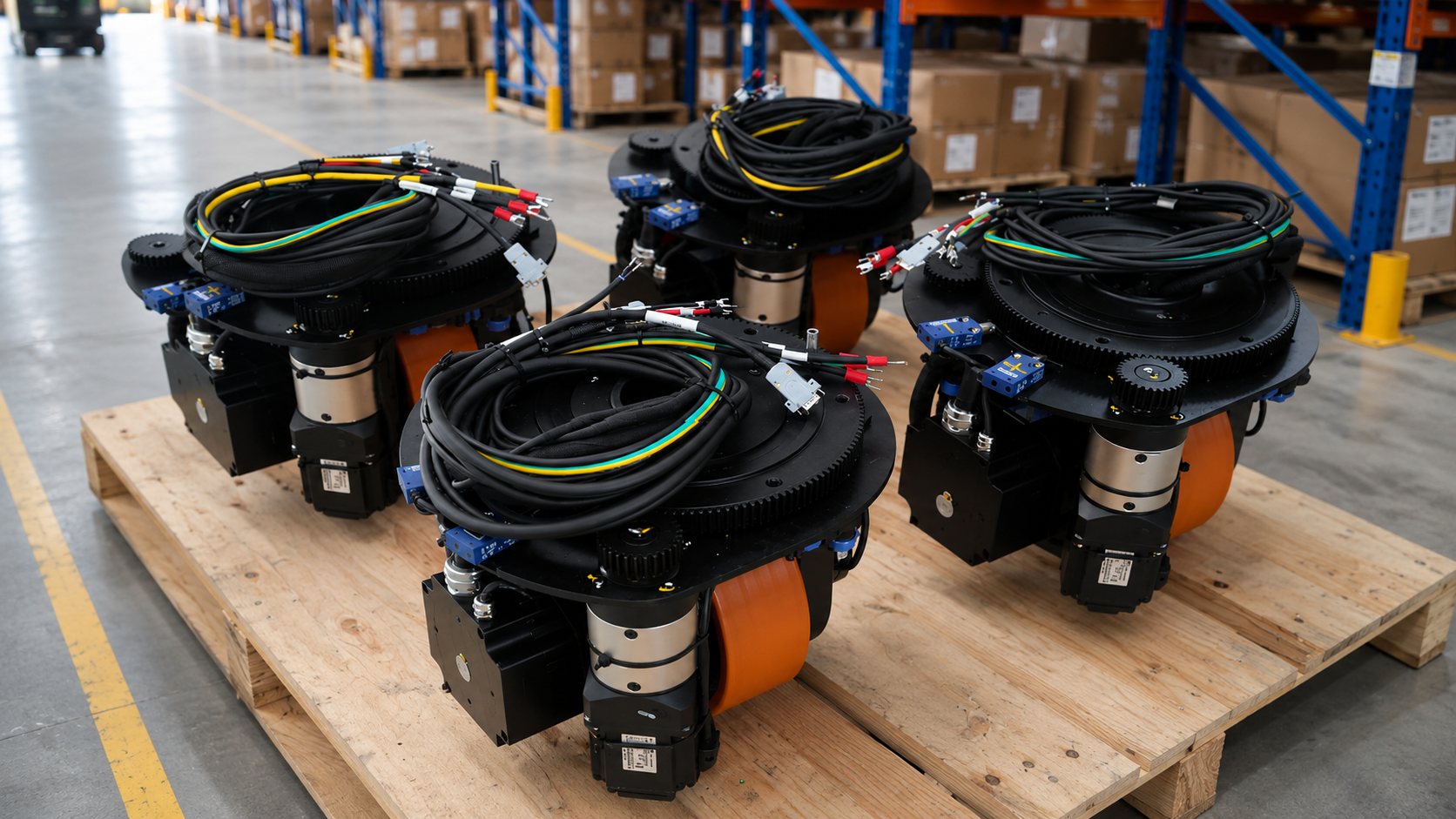

A horizontal steering drive wheel is an integrated drive module that combines driving, steering, and load support. It provides motion and steering control for AGVs and AMRs. When properly configured with the vehicle control system and support wheels, it can enable the vehicle to move forward and backward, turn, travel sideways, and rotate in place.
At HKT ROBOT, we offer horizontal steering drive wheels for light-, medium-, and heavy-duty applications. The products feature a compact design and can be configured with different motors, gearboxes, encoders, and wheel materials according to vehicle load, speed, installation space, and control requirements.
| Key Specification | Performance Range | Application |
| Load Capacity Per Wheel | 550–5,700 kg | Suitable for AGVs and AMRs with different load requirements |
| Max Reference Towing Weight | 800–10,000 kg | Supports industrial transport and heavy-duty towing |
| Service Life | Up to 20,000 hours* | Helps reduce maintenance frequency and long-term operating costs |
*Actual service life depends on load, speed, duty cycle, floor conditions, and maintenance.
Installation Advantages of Horizontal Steering Wheels
Compared with some vertical designs, a horizontal steering drive wheel uses a lower-profile installation. This design helps lower the vehicle’s center of gravity and overall chassis height while leaving more space for batteries, controllers, and other components.
For underride AGVs, low-profile transport robots, and vehicles with limited installation space, this structure provides strong drive and steering performance without taking up too much vertical space. Its compact design also makes chassis integration easier and can improve vehicle stability and accessibility.
How to Select the Right Horizontal Steering Drive Wheel
Selection should not be based on rated load alone. Other factors such as vehicle weight, maximum payload, number of drive wheels, chassis layout, travel speed, floor conditions, duty cycle, and available installation space should also be considered. For applications with frequent starts and stops, frequent turning, or uneven floor joints, a suitable dynamic load margin and safety factor should also be included.
For correct selection, customers should provide:
-
Vehicle weight and maximum payload
-
Number of steering drive wheels and chassis layout
-
Target travel speed
-
Installation dimensions and interface requirements
-
Floor type, slope, and operating environment
-
Motor voltage, control method, and braking requirements
Based on this information, the engineering team can further evaluate motor power, gear ratio, wheel diameter, wheel width, and encoder configuration.
Typical Applications of AGV Horizontal Steering Wheel
With its compact structure, stable drive performance, and high load capacity, the horizontal steering drive wheel can be used in smart warehouses, automotive manufacturing, battery production, mold handling, large workpiece transport, and automated assembly lines.
Depending on the chassis design, the vehicle may use one, two, or several steering drive wheels together with caster wheels or support wheels. The final movement and load performance depend on the complete vehicle structure, control system, and operating conditions.
HKT ROBOT: AGV/AMR Drive Solution Provider
HKT ROBOT is a specialized provider of AGV/AMR components, focused on delivering high-performance and reliable power transmission solutions. Our horizontal steering wheels stand as a testament to our deep technical expertise in the field of transmission. They are not merely critical components within AGV/AMR systems, but essential drivers that enable enterprises to achieve intelligent upgrades.
In addition to standard product selection, we also provide custom solutions based on the customer’s chassis design and operating requirements.
Looking ahead, as intelligent logistics technology continues to evolve, we remain committed to deepening our expertise in the drive sector. Through our premium products and professional services, we aim to empower the application and growth of more intelligent equipment, collectively advancing the progress of industrial automation.
