High Torque & Large Load Differential AGV Motor Wheel for 48V 1000W Power
Voltage: 48V
Rated Load: 2000kg
Rated Torque: 200 N·m
Drive Wheel Diameter: 220mm
Pairs well with

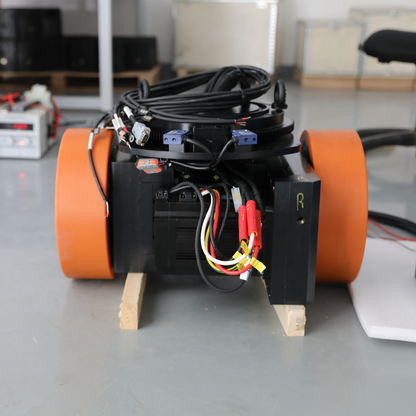

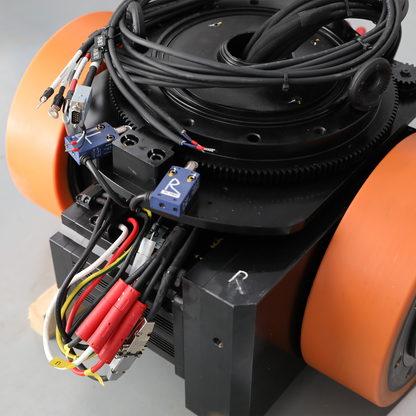

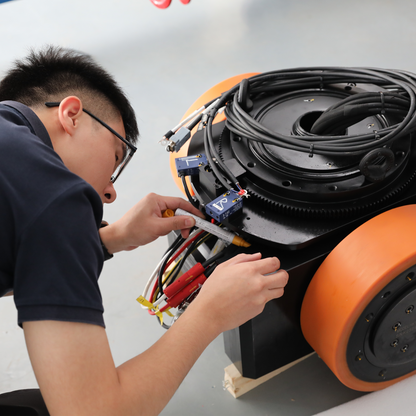

High Torque & Large Load Differential AGV Motor Wheel for 48V 1000W Power
HKT 2000kg Heavy-Duty Differential Wheel Module supports loads up to 2000kg and offers precise control. Ideal for industrial and logistics applications, it features durability and high efficiency, ensuring stable operation in harsh environments.
Super Load Capacity and Strong Torque: The module features a 220 mm drive wheel with a rated load of up to 2000 kg, rated torque of 200 Nm, and maximum torque of 400 Nm, ensuring stability and efficiency for heavy-duty AGV transportation.
Excellent Transmission and Control Performance: With a speed ratio of 36 and maximum speed of 57.6 m/min, it offers robust power output and precise control, using the BRT38-COM4096D16-RT1 encoder and 20:120 gear ratio for accurate steering.
High Efficiency and Reliability: Rated at 1000W power, 48V DC voltage, and 26.4 A current, it ensures high energy efficiency and stable performance with grease lubrication for reduced maintenance.
Durability and Environmental Adaptability: IP54 protection level and operational range of -25°C to +90°C make it suitable for harsh conditions, enhancing equipment lifespan and reliability.
Safety and Precise Control: Built-in brake system ensures quick response and precise docking, while high-quality polyurethane provides excellent grip and wear resistance.
Applicable Scenarios: Ideal for high-load, high-precision, and high-efficiency industrial settings, including manufacturing plants, heavy material warehouses, and complex logistics centers.
Differential AGV Motor Wheel Specification:
| Model:HKT-DW-220-36-1000 | |
| Motor Parameters | |
| Rated Power | 1000W |
| Rated Torque | 3.18Nm |
| Voltage | 48V DC |
| Rated Current | 26.4A |
| Rated Speed | 3000r/min |
| With Brake Or Not | Yes |
| Reducer Parameters | |
| Speed Ratio | 36 |
| Rated Torque | 200Nm |
| Max.Torque | 400Nm |
| Lubrication Method | Grease Lubrication |
| Machine Parameters | |
| Drive Wheel Diameter | 220mm |
| Rated Load | 2000kg |
| Max.Speed | 57.6m/min |
| Turning Diameter | 480mm |
| Mechanical LimitAnge | ±135° |
| Max.Yaw Angle | ±5° |
| Drive Wheel Material | Polyurethane |
| Steering Encoder Model | BRT38-COM4096D16-RT1 |
| Steering EncoderGear Radio | 20:120 |
| Protection Grade | IP54 |
| Operation Temperature | -25C°~+90C° |
